Union Cross Tube Fittings

Union Cross Tube Fittings Manufacturer and supplier in Dubai UAE

Model No. GV-18-UC

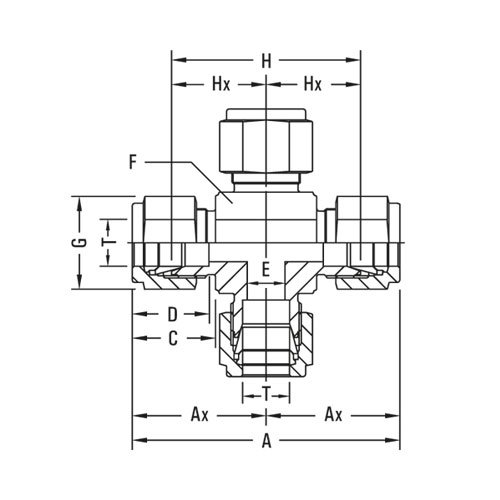

Union Cross Tube Fittings Manufacturer and supplier in Dubai UAE, GV-18-UC
Union Cross Tube Fittings Manufacturer and supplier in Dubai UAE, GV-18-UC

INCH OD Tubes x Male NPT Threads

Model No. T Tube OD A Ax C D E min. F A/F G A/F H Hx
GV-18-UC-2 1/8 44.8 22.4 15.3 12.7 2.4 12.7 11 31.6 15.8
GV-18-UC-4 1/4 53.8 26.9 17.8 15.3 4.8 12.7 14 39.2 19.6
GV-18-UC-6 3/8 61 30.5 19.3 16.8 7.1 15.5 17 46.4 23.2
GV-18-UC-8 1/2 72 36 21.8 22.9 10.4 20.5 22 51.8 25.9
GV-18-UC-12 3/4 79.8 39.9 21.8 24.4 15.8 27 28.5 59.4 29.7
GV-18-UC-16 1 98 49 26.4 31.2 22.3 36 38 73.6 36.8

METRIC OD Tubes x Male NPT Threads

Model No. T Tube OD A Ax C D E min. F A/F G A/F H Hx
GV-18-UC-3m 3 44.6 22.3 15.3 12.9 2.4 12.7 11 31.4 15.7
GV-18-UC-6m 6 54 27 17.7 15.3 4.8 12.7 14 39.2 19.6
GV-18-UC-8m 8 57.6 28.8 18.6 16.2 6.3 16 16 42.6 21.3
GV-18-UC-10m 10 63 31.5 19.5 17.2 7.9 17 19 47.8 23.9
GV-18-UC-12m 12 72 36 22 22.8 9.5 20.5 22 51.8 25.9
GV-18-UC-16m 16 76 38 22 24.4 12.7 24 25 55.8 27.9
GV-18-UC-22m 22 89.2 44.6 22 26 18.3 32 32 69 34.5
GV-18-UC-25m 25 98.2 49.1 26.5 31.3 21.8 35 38 73.6 36.8

Note: All dimensions are subject to change without notice
All dimensions are in mm unless specified

GLOBAL Valves tube fittings deliver a leak-tight, gas-tight seal in an easy-to-install, disassemble, and reassemble form. The robust tube grip with patented, two-ferrule technology is resistant to vibration fatigue and withstands high pressures and temperature extremes

Tube Fittings has been designed for use in instrumentations, process & control system, analyses and environment employed in chemical, petroleum, power generating, pulp & paper plants. GLOBAL Valves tube fitting has also found special application in other fields where high-pressure tube fitting has also found special application in other fields where high-pressure tube fittings are required. If more specific information, including heat code traceability, is required GLOBAL Valves will provide details. Stainless steel Tubefit Engineers tube fitting work reliably on both seamless & welded - redrawn, fully, annealed type tubing.
