Two Valve (Three-way) Manifold
for Pressure Instruments Manufacturer and supplier in Dubai UAE

Model No. GV-104-2VM

Maximum working pressure:
6000 psi (414bar) at 100°F (38°C)
Working temperature:
-65°F (-54°C) to 464°F (240°C)

Diversity of configuration for application
to differential pressure, level and transmitters.
color caps to identify valve function.
100% factory tested.
Heat code traceability.
Material : A479 304, A479 316, A182 GRF 316
Finish: SS Natural, Shot Blast, Zinc Plated

Description

Part No.	Part Description	Material	Qty.
1	Body	SS 316	1
2	Gland Body	SS 316	2
3	Gland Retainer	SS 304	2
4	Check Nut	SS 304	2
5	Spindle	SS 316	2
6	Gland Packing	P.T.F.E	4
7	Gland Ring	SS 304	2
8	Gland Washer	SS 304	2
9	Trim	SS 316	2
10	Dust Cap	Rubber	2
11	Handle	SS 304	2
12	Grub Screw	SS	2
13	Lock Pin	SS 304	2

Note: 1. Packing is optional with graphite for high temperature to 450℃

6000 PSI

PROCESS PORT	GAUGE PORT	DRAIN PORT	A	L1	L2
1/2" NPT(F)	1/2" NPT(F)	1/4" NPT(F)	68	98	110
1/2" NPT(F)	1/2" NPT(F)	1/2" NPT(F)	68	98	110
3/4" NPT(F)	3/4" NPT(F)	3/4" NPT(F)	70	98	110

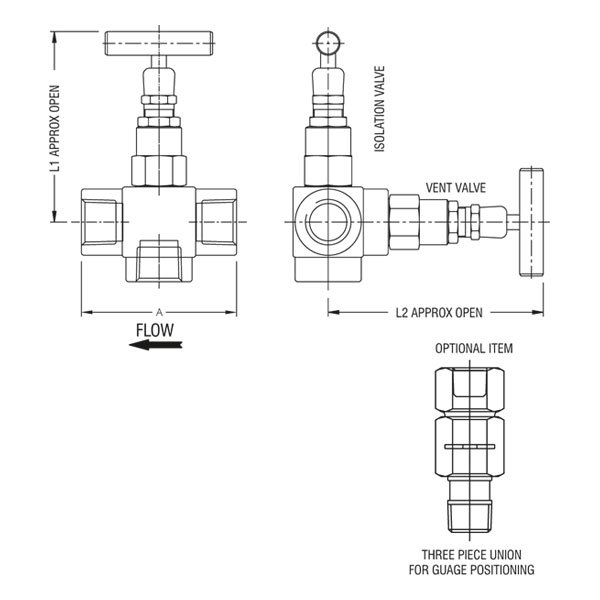

Angle Type II

Gauge Inline with Drain/Vent and Process at Right Angle
1/2" NPT(F)	1/2" NPT(F)	1/2" NPT(F)	68	98	110
3/4" NPT(F)	3/4" NPT(F)	3/4" NPT(F)	68	98	110

Note: All dimensions are subject to change without notice All dimensions are in mm unless specified

GLOBAL Valves tube fittings deliver a leak-tight, gas-tight seal in an easy-to-install, disassemble, and reassemble form. The robust tube grip with patented, two-ferrule technology is resistant to vibration fatigue and withstands high pressures and temperature extremes

Tube Fittings has been designed for use in instrumentations, process & control system, analyses and environment employed in chemical, petroleum, power generating, pulp & paper plants. GLOBAL Valves tube fitting has also found special application in other fields where high-pressure tube fitting has also found special application in other fields where high-pressure tube fittings are required. If more specific information, including heat code traceability, is required GLOBAL Valves will provide details. Stainless steel Tubefit Engineers tube fitting work reliably on both seamless & welded - redrawn, fully, annealed type tubing.
