Ball Valves

GV-158-S-BV, Square Ball Valve - Ball Valves

Square Ball Valve Manufacturer and supplier in Dubai UAE

Model No. GV-158-S-BV

FEATURES
Maximum working pressure:
3000 psi (206 bar) at 100°F (38°C)
Working temperature:
From(-45°C) to 450°C with PEEK seat
A 316 stainless steel handle covered with vinyl sleeve gives quarter turn rust-free operation.
Valves with PEEK seats are supplied with sleeves on handles.
A robust pin is to create a positive stop.
The stem +with shoulder provides blowout proof design to maintain seal integrity at all pressure.
Optional sour gas service conforms to NACE Mr0175.
Ball valves are hydrostatic tested at the full rated pressure and low pressure pneumatic at 70 psi.

Description

Bill of Material
Sr. No. Description Material Qty
1 Body SS316 1
2 Adaptor SS316 2
3 Seat Ring PTFE 2
4 Ball SS316 1
5 Stem Ss316 1
6 Gland Seal PTFE 2
7 Gland Washer SS316 1
8 Spring Washer SS316 2
9 Lock Nut SS304 1
10 Stopper Pin Plastic 1
11 Handle SS304 1
12 Handle Sleeve PVC 1
6000 PSI

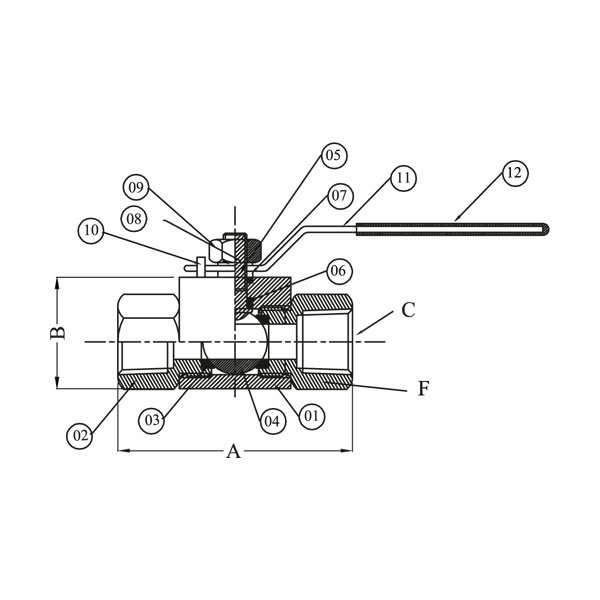

Model No. A B (SQ) C F (A/F)
GV-158-S-BV-4 70 32 1/4"NPT (F) 25
GV-158-S-BV-6 70 32 3/8"NPT (F) 25
GV-158-S-BV-8 86 40 1/2"NPT (F) 28
GV-158-S-BV-12 96 45 3/4"NPT (F) 36
GV-158-S-BV-16 114 50 1"NPT (F) 41
GV-158-S-BV-20 114 50 1-1/4"NPT (F) 46
GV-158-S-BV-24 150 75 1-1/2"NPT (F) 63
GV-158-S-BV-32 170 95 2"NPT (F) 76

Note: All dimensions are subject to change without notice All dimensions are in mm unless specified
