GV-151-BV, Round Body Ball Valve - Ball Valves

Round Body Ball Valve Manufacturer and supplier in Dubai UAE

Model No. GV-151-BV

FEATURES
Maximum working pressure:
3000 psi (206 bar) at 100°F (38°C)
Working temperature:
From-30°C to 180°C with PTFE seat
A 316 stainless steel handle covered with vinyl sleeve gives quarter turn rust-free operation.
Valves with PTFE seats are supplied with sleeves on handles. A robust pin is to create a positive stop.
The stem with shoulder provides blowout proof design to maintain seal integrity at all pressure.
Optional sour gas service conforms to NACE Mr0175.
Ball valves are hydrostatic tested at the full rated pressure and low pressure pneumatic at 70 psi.
100% factory test

Description

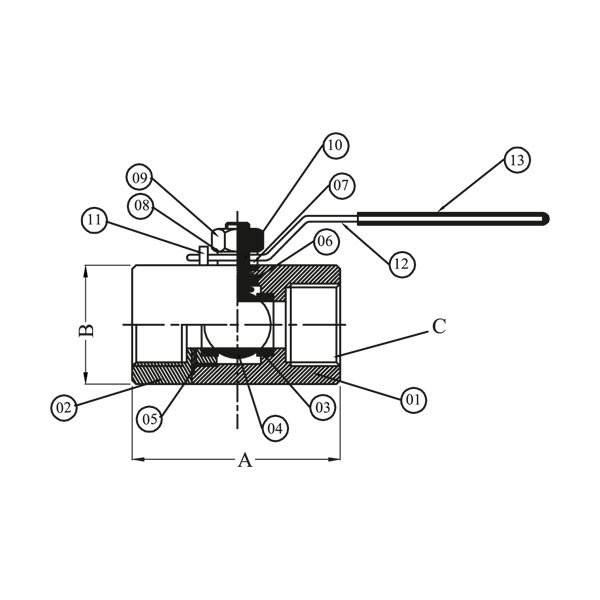

Bill of Material
Sr. No. Description Material Qty
1 Body SS316 1
2 Adaptor SS316 1
3 Seat Ring PTFE 2
4 Ball SS316 1
5 Gasket PTFE 1
6 Gland Seal PTFE 2
7 Gland Washer SS316 1
8 Spring Washer SS 1
9 Lock Nut SS316 1
10 Stem SS316 1
11 Stopper Pin SS304 1
12 Handle SS304 1
13 Handle Sleeve PVC 1
3000 PSI
Model No. A ØB C
GV-151-BV-2 55 27 1/8"NPT(F)
GV-151-BV-4 57 31 1/4"NPT(F)
GV-151-BV-6 57 31 3/8"NPT(F)
GV-151-BV-8 68 35 1/2"NPT(F)
GV-151-BV-12 75 43 3/4"NPT(F)
GV-151-BV-16 83 48 1"NPT(F)
GV-151-BV-20 102 63 1.1/4"NPT(F)
GV-151-BV-24 105 67 1.1/2"NPT(F)
GV-151-BV-32 123 86 2"NPT(F)

Note: All dimensions are subject to change without notice All dimensions are in mm unless specified
