Nut Tube Fittings

Nut Tube Fittings Manufacturer and supplier in Dubai UAE

Model No. GV-3-N

Nut Tube Fittings Manufacturer and supplier in Dubai UAE
Nut Tube Fittings Manufacturer and supplier in Dubai UAE
INCH OD Tubes

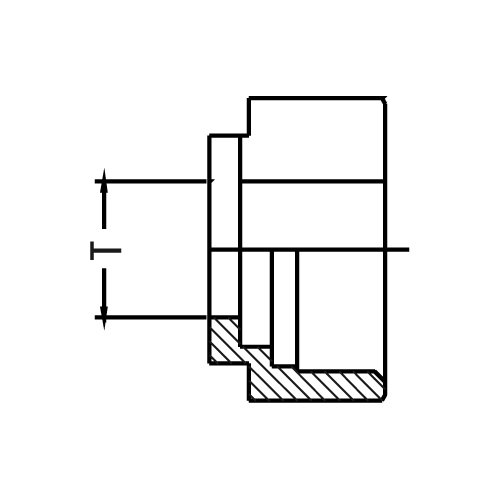

Model No. T Tube OD
GV-3-N-1 1/16
GV-3-N-2 1/8
GV-3-N-4 1/4
GV-3-N-5 5/16
GV-3-N-6 3/8
GV-3-N-8 1/2
GV-3-N-10 5/8
GV-3-N-12 3/4
GV-3-N-14 7/8
GV-3-N-16 1
GV-3-N-20 1.1/4
GV-3-N-24 1.1/2
GV-3-N-32 2

Note: All dimensions are subject to change without notice
All dimensions are in mm unless specified

METRIC OD Tubes
Model No. T Tube OD
GV-3-N-3m  3
GV-3-N-6m  6
GV-3-N-8m  8
GV-3-N-10m 10
GV-3-N-12m 12
GV-3-N-14m 14
GV-3-N-15m 15
GV-3-N-16m 16
GV-3-N-18m 18
GV-3-N-20m 20
GV-3-N-22m 22
GV-3-N-25m 25
GV-3-N-28m 28
GV-3-N-30m 30
GV-3-N-32m 32
GV-3-N-38m 38
