Model No. GV-152-H-BV

FEATURES
Maximum working pressure:
10000 psi (690 bar) at 30°C
Working temperature:
From 54°C to 450°C with PEEK Packing.
A 316 stainless steel handle covered with vinyl sleeve gives quarter turn rust-free operation.
Valves with PEEK seats are supplied with sleeves on handles. A robust pin is to create a positive stop.
The stem +with shoulder provides blowout proof design to maintain seal integrity at all pressure.
Optional sour gas service conforms to NACE Mr0175.
Ball valves are hydrostatic tested at the full rated pressure and low pressure pneumatic at 70 psi.
100% factory test

GV-152-H-BV, High Pressure Ball Valve - Ball Valves

Description

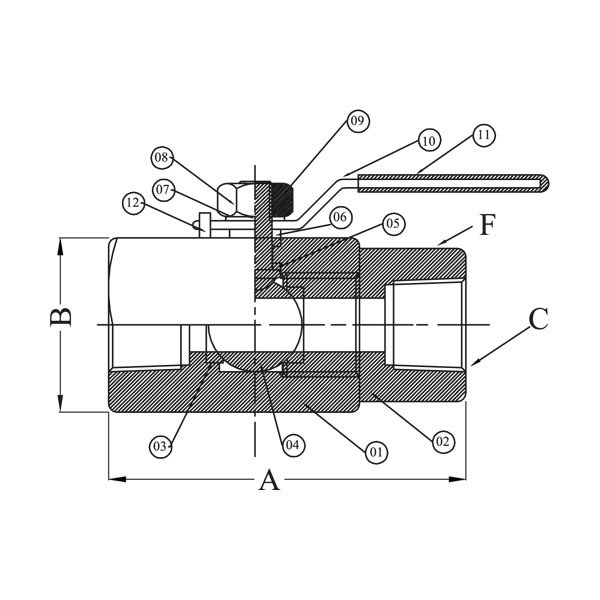

Bill of Material
Sr. No. Description Material Qty
1 Body SS316 1
2 Adaptor SS316 1
3 Seat Ring PTFE 2
4 Ball SS316 1
5 Gland Seal PTFE 2
6 Gland Washer SS316 1
7 Spring Washer SS 1
8 Lock Nut SS316 1
9 Stem SS316 1
10 Handle SS304 1
11 Handle Sleeve PVC 1
12 Stopper Pin SS304 1
10000 PSI
Model No. A B (A/F) C F (A/F)
GV-152-H-BV-4 79.0 36.0 1/4"NPT (F) 32.0
GV-152-H-BV-6 79.0 36.0 3/8"NPT (F) 32.0
GV-152-H-BV-8 86.0 41.0 1/2"NPT (F) 36.0
GV-152-H-BV-12 100.0 46.0 3/4"NPT (F) 41.0
GV-152-H-BV-16 106.0 50.0 1"NPT (F) 46.0

Note: All dimensions are subject to change without notice All dimensions are in mm unless specified
