Female Adapter Tube Fittings

Female Adapter Tube Fittings Manufacturer and supplier in Dubai UAE

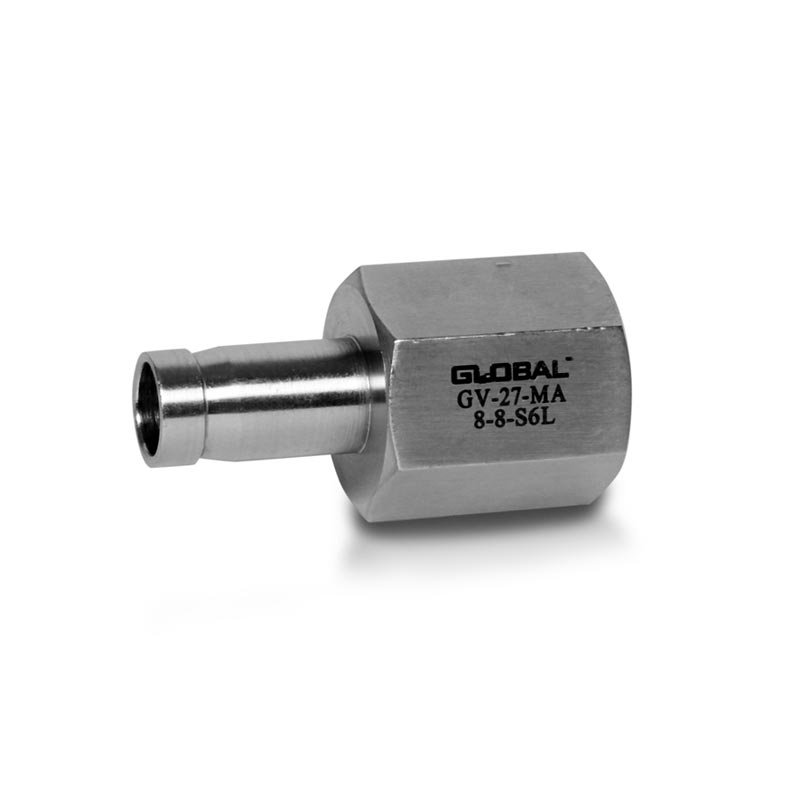

Model No. GV-27-MA

Female Adapter Tube Fittings Manufacturer and supplier in Dubai UAE
Female Adapter Tube Fittings Manufacturer and supplier in Dubai UAE

INCH OD Tubes x Male NPT Threads

Model No.  T Tube OD P NPT Male A B E min. F A/F
GV-27-MA-2-2N 1/8 1/8 29.5 9.6 2.1 12.5
GV-27-MA-2-4N 1 1 /4 34.8 14.4 2.1 14
GV-27-MA-4-2N 1/4 1/8 31.8 9.6 4.8 11
GV-27-MA-4-4N 1/4 1/4 37 14.3 4.8 14
GV-27-MA-4-6N 1/4 3/8 37.8 14.3 4.8 19
GV-27-MA-4-8N 1/4 1/2 43.4 19.1 4.8 22
GV-27-MA-6-4N 3/8 1/4 38.9 14.3 7.1 14
GV-27-MA-6-6N 3/8 3/8 39.6 14.3 7.1 19
GV-27-MA-6-8N 3/8 1/2 45.2 19.1 7.1 22
GV-27-MA-8-4N 1/2 1/4 44.5 14.3 7.1 14
GV-27-MA-8-6N 1/2 3/8 45.2 14.3 9.9 19
GV-27-MA-8-8N 1/2 1/2 50.8 19.1 9.9 22
GV-27-MA-12-12N 3/4 3/4 52.3 19.1 15 28
GV-27-MA-16-12N 1 1 66 23.8 20.3 36
GV-27-MA-20-20N 1.1/4 1.114 80.3 23.8 27.6 45
GV-27-MA-24-24N 1.1/2 1.1/2 94.5 26.2 33.2 55

METRIC OD Tubes x Male NPT Threads

Model No.  T Tube OD P NPT Male A B E min. F A/F
GV-27-MA-3m-4N 3 1/4 34.8 9.6 2.1 14
GV-27-MA-6m-2N 6 1/8 32.8 14.3 4.6 14
GV-27-MA-6m-4N 6 1/4 38.1 14.3 4.6 14
GV-27-MA-8m-4N 8 1/4 39.1 14.3 6.2 14
GV-27-MA-10m-4N 10 1/4 39.9 14.3 7.7 14
GV-27-MA-10m-6N 10 3/8 40.6 14.3 7.7 19
GV-27-MA-12m-4N 12 1/4 46.5 14.3 7.1 14
GV-27-MA-12m-6N 12 3/8 46.5 14.3 9.1 19
GV-27-MA-12m-8N 12 1/2 52 14.3 9.1 22
GV-27-MA-25m-12N 25 3/4 62 19.1 15.7 28
GV-27-MA-25m-16N 25 1 66.8 23.8 15.7 36
GV-27-MA-30m-16N 30 1 79.2 23.8 22.2 41
GV-27-MA-30m-20N 30 1.1/4 80 23.8 24.6 45
GV-27-MA-32m-20N 32 1.1/4 81 23.8 27.4 46
GV-27-MA-38m-24N 38 1.1/2 92.2 26.2 33.3 55

Note: All dimensions are subject to change without notice
All dimensions are in mm unless specified

GLOBAL Valves tube fittings deliver a leak-tight, gas-tight seal in an easy-to-install, disassemble, and reassemble form. The robust tube grip with patented, two-ferrule technology is resistant to vibration fatigue and withstands high pressures and temperature extremes

Tube Fittings has been designed for use in instrumentations, process & control system, analyses and environment employed in chemical, petroleum, power generating, pulp & paper plants. GLOBAL Valves tube fitting has also found special application in other fields where high-pressure tube fitting has also found special application in other fields where high-pressure tube fittings are required. If more specific information, including heat code traceability, is required GLOBAL Valves will provide details. Stainless steel Tubefit Engineers tube fitting work reliably on both seamless & welded - redrawn, fully, annealed type tubing.
