Check Valves / Non Return Valves

Check Valve (Female x Female) Manufacturer and supplier in Dubai UAE

Model No. GV-142-CV-10K

FEATURES
Maximum Working Pressure:
10000 psi (710 bar)at 100°F (38°C)
Working Temperature :
-10°F (-23°C) to 392°F (200°C)
SS304/SS316 Stainless Steel
Cracking Pressure :
1psi (.06 bar) to 25psi (1.7 bar)
Viton O-rings
Sizes: 1/8”~1” pipe thread

GV-142-CV-10K, Check Valve Female x Female, Check Valves

Description

10000 PSI

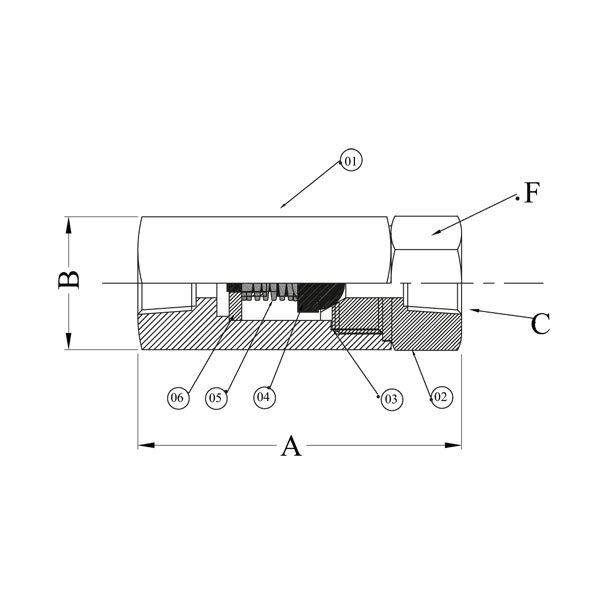

Model No. A B (A/F) C F (A/F)
GV-142-CV-4 76 32 1/4"NPT 28
GV-142-CV-6 76 32 3/8"NPT 28
GV-142-CV-8 88 38 1/2"NPT 32
GV-142-CV-12 98 41 3/4"NPT 38
GV-142-CV-16 102 46 1"NPT 41

*End connections other threads on request

Note: 1. Packing is optional with graphite for high temperature to 450℃

Bill of Material
Sr. No. Description Material Qty
1 Body SS316L 1
2 Side Adaptor SS316L 1
3 Gland Washer SS316L 1
4 Piston SS316L 1
5 Spring SS 1
6 Wheel SS316L 1

Note: All dimensions are subject to change without notice All dimensions are in mm unless specified
