Ball Valves

3 Way Ball Valve Manufacturer and supplier in Dubai UAE

Model No. GV-156-BV-3W

FEATURES
Maximum working pressure:
3000 psi (206 bar) at 38°C
Working temperature:
From -54°C to 180°C with PEEK Packing.
A short handle gives quarter turn rust-free operation.
Valves with PTEF seats are supplied with short handles.
A robust pin is to create a positive stop.
The stem +with shoulder provides blowout proof design to maintain seal integrity at all pressure.
Optional sour gas service conforms to NACE Mr0175.
Ball valves are hydrostatic tested at the full rated pressure and low pressure pneumatic at 70 psi.
100% factory test

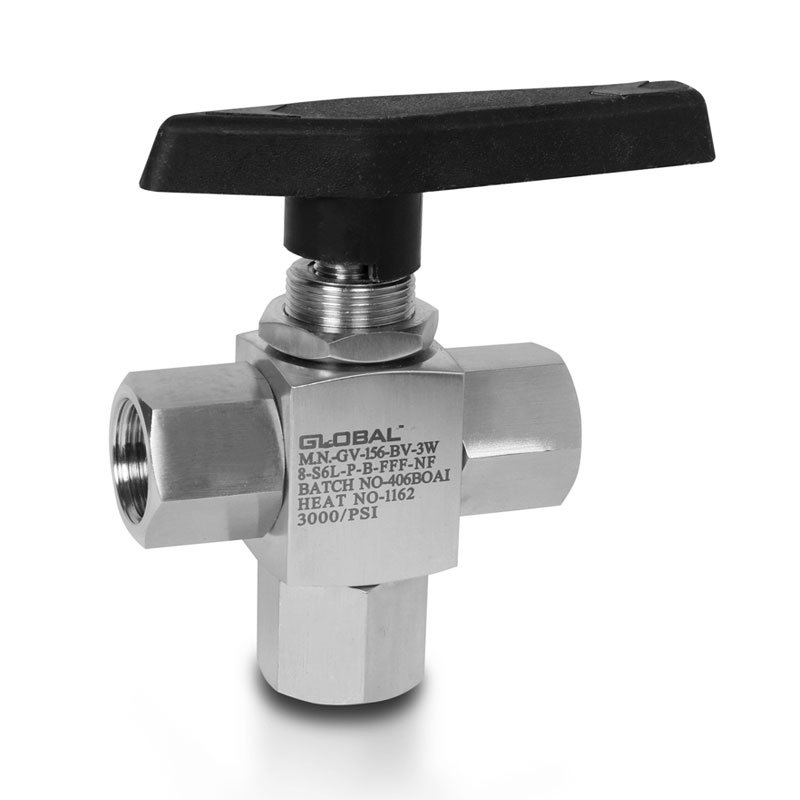

3 Way Ball Valve - Model No. GV-156-BV-3W
3 Way Ball Valve - Model No. GV-156-BV-3W

Description

Bill of Material

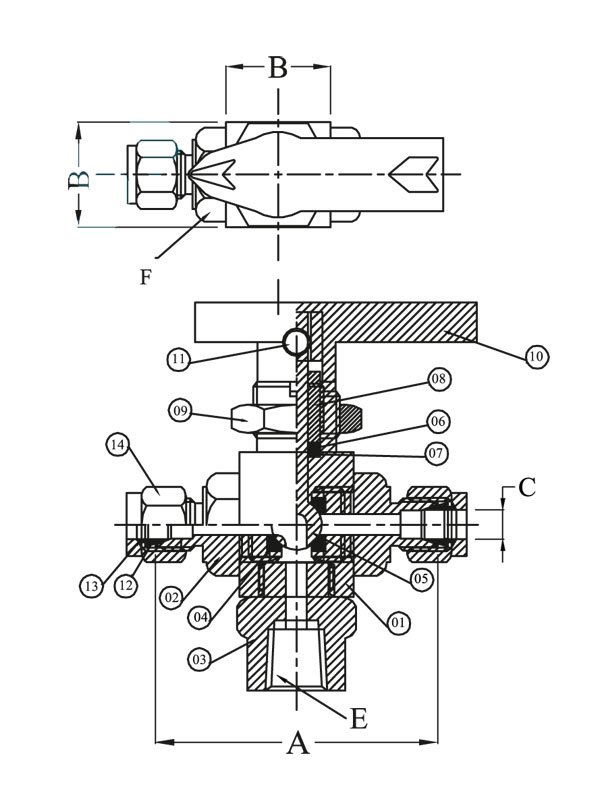

Sr. No. Description Material Qty
1 Body SS316 1
2 OD Adaptor SS316 2
3 Female Adaptor SS316 1
4 Seat Ring PTFE 2
5 Ball Stem SS316 1
6 Gland Seal PTFE 2
7 Gland Washer SS316 1
8 Gland Retainer SS316 1
9 Check Nut SS316 1
10 Handle Plastic 1
11 Grub Screw SS304 1
12 Front Ferrule SS316 2
13 Back Ferrule SS316 2
14 Nut SS316 2

Note: All dimensions are subject to change without notice All dimensions are in mm unless specified

3000 PSI (OD)
Model No. A B (SQ) C F (A/F)
GV-156-BV-3W-2 63.0 25.0 1/8"OD 19.0
GV-156-BV-3W-4 63.0 25.0 1/4"OD 19.0
GV-156-BV-3W-6 63.0 25.0 3/8"OD 19.0
GV-156-BV-3W-8 78.0 32.0 1/2"OD 27.0
GV-156-BV-3W-12 78.0 32.0 3/4"OD 37.0
GV-156-BV-3W-16 92.0 40.0 1"OD 36.0
3000 PSI (NPT)
Model No. A B (SQ) C F (A/F)
GV-156-BV-3W-2 63.0 25.0 1/8"NPT (F) 19.0
GV-156-BV-3W-4 63.0 25.0 1/4"NPT (F) 19.0
GV-156-BV-3W-6 63.0 25.0 3/8"NPT (F) 22.0
GV-156-BV-3W-8 78.0 32.0 1/2"NPT (F) 27.0
GV-156-BV-3W-12 92.0 40.0 3/4"NPT (F) 36.0
GV-156-BV-3W-16 106.0 45.0 1"NPT (F) 41.0
